Project Scope

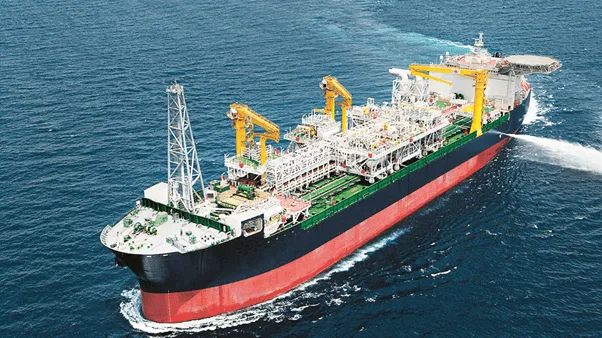

Project Vacuum Skid piping for FPSO system.
Client Confidential
Consultant Confidential
Contractor Confidential
Project Status Completed.
Scope Pipe Stress Analysis 3D Modelling & Structural analysis
Description Performed sustain stress check, thermal stress check and occasional stress check. Performed Transportation analysis. Performed Blast analysis. Suitable load case has been given and analysis has been done. Performed load sheet for the anchor supports and other rigid supports. Performed entire structural design of Skid package and 3D Modelling. Entire 3D Modelling and extraction of isometrics.
