Reducing BIM QA/QC Effort by 60% through Checklist-Based Automation in Revit

Contact Us

Project Snapshot

Parameters
Details
ClientGulf based Digital-Construction firm
SectorAEC BIM project
PlatformAutodesk Revit
Service PartnerConserve Solutions
Key Outcome

Improved project efficiency and reduced delivery risk by automating QA/QC processes, resulting in ~60% less rework and consistently high model validation accuracy.

Software and Technology UsedAutodesk Revit, C#, Revit API, Microsoft Excel (Reporting)

Problem Statement

  • Our team spends excessive time manually checking Revit models before submission, yet we still face inconsistencies, missed errors, and lack of confidence in QA/QC outcomes.

Impact of Challenges

  • Delivery Delays: QA/QC activities extended submission timelines by 18–25%
  • Quality Issues: Rework cycles due to missed checks ranged between 20–28%
  • Low Confidence in QA/QC: No measurable validation status; decisions based on assumptions
  • Resource Dependency: ~35–45% of QA/QC effort depended on senior BIM coordinators
  • Inconsistent Standards: Variations across teams caused 15–20% mismatch in deliverables

Conserve Solutions - How We Solved It

a. Thinking (Strategy)

We identified that the core issue was not just errors—but the absence of a structured, repeatable QA/QC framework within Revit.

Instead of improving manual checking, we focused on eliminating it through automation and standardization.

b. Execution (What We Built)

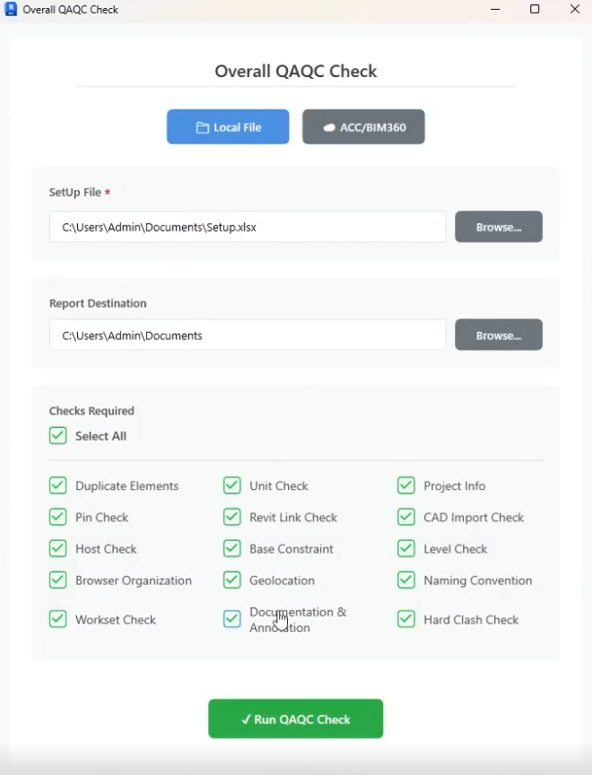

We developed a Checklist-Driven QA/QC Automation Tool integrated within Revit.

Key Capabilities:
  • Predefined QA/QC categories: General | Quality | Setup
  • Rule-based validation system
  • Automated checks for:
    • Naming conventions
    • Project parameters & metadata
    • Units and geolocation
    • Worksets and pinned elements
    • Linked models (Revit/CAD)
    • Levels, hosting, constraints
    • Annotation standards
    • Clash-related conditions

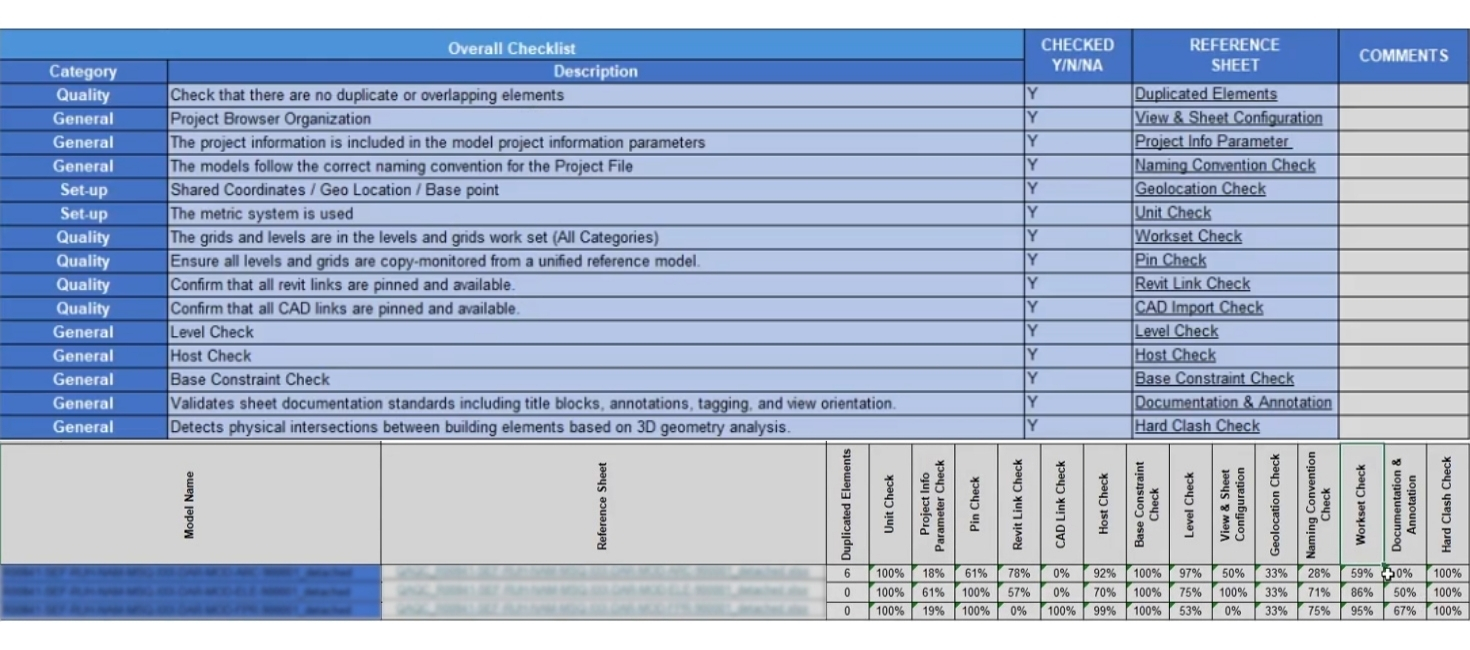

Validation Output:
    • Comprehensive consolidated report with compliance percentages across all checks.
    • Detailed individual reports providing the necessary information to identify and rectify issues.

c. Integration (Impact Layer)

  • Embedded directly into existing Revit workflows
  • Applicable across multiple disciplines
  • Batch processing capability for both local and cloud-based models.
  • Enabled consistent QA/QC across teams and projects
  • Provided audit-ready validation reports

The implementation enabled near-complete model validation coverage (>95%), ensuring that critical QA/QC checks are no longer missed and significantly reducing downstream coordination risks.

Project Timeline:

Phase
Duration/Details
Overall Duration4–5 Weeks
Week 1–2Requirement analysis & rule definition
Week 3–4Tool development & testing
Week 5Deployment & user training



Delivered - What We Delivered

  • Revit-Integrated QA/QC Automation Tool
  • Standardized QA/QC checklist framework
  • Centralized reporting system
  • Documentation & user guidelines
  • Training and implementation support

Before vs After - QA/QC

MetricBeforeAfter
QA/QC Time per Model8–12 hours3–4 hours
Error Detection Accuracy~65–70% (manual)~90–95% (rule-based)
Rework Due to QA Issues20–28%5–8%
Process ConsistencyVaries by userStandardized across teams
Model Validation CoveragePartial (~60%)Near-complete (>95%)
Reporting & Audit ReadinessNot availableAutomated & structured
Dependency on Senior ResourcesHigh (~40%)Reduced (~15–20%)

Why Conserve Solutions

  • Process-First Approach (Not just tool development)
  • Strong focus on QA/QC integration within workflows
  • Scalable solutions across disciplines and projects
  • Ability to combine BIM expertise + automation intelligence
  • Focus on client capability enhancement, not dependency

Client Outcome

“The QA/QC automation significantly reduced our manual effort and improved our confidence in model quality. We now have a clear, standardized validation process across all projects.”

– BIM Coordinator, AEC Project Team
