Objective
To evaluate and optimize the thermal comfort within the large-volume prayer hall of the Mosque Building KSA, accommodating fluctuating occupancy levels while ensuring energy-efficient air distribution and maintaining aesthetic and structural integrity.
Project Overview
The Mosque Building KSA features a majestic prayer hall spanning 4,000 square meters with a ceiling height of 25 meters. This architectural scale poses challenges in maintaining thermal comfort, especially during peak usage periods. Our scope was to conduct a detailed Computational Fluid Dynamics (CFD) analysis to assess and enhance the indoor environment, focusing on air distribution effectiveness, occupant comfort, and HVAC system performance.

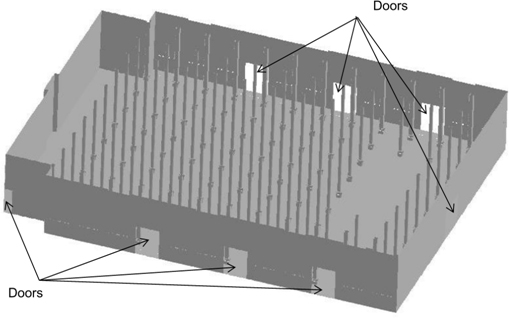

Key Design Features

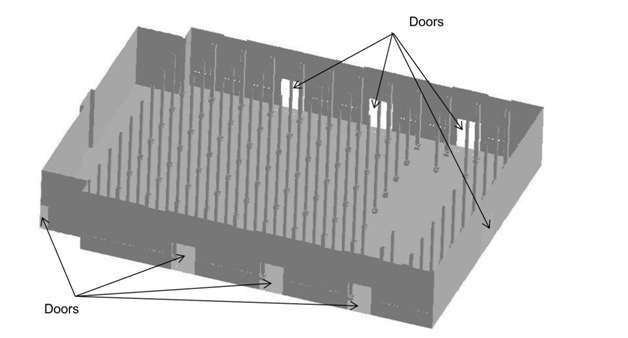

Jet Nozzles at Boundary Walls

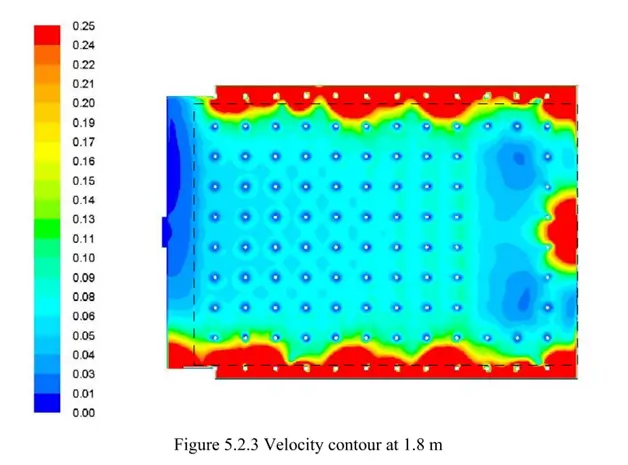

Strategically placed jet nozzles at the perimeter walls were used to provide targeted air throw across the large hall. These nozzles facilitate high-velocity air supply that mixes with the indoor air effectively, ensuring thermal comfort without disturbing the prayer environment. The CFD analysis focused on throw distance, temperature distribution, and air velocity profiles at occupant level.
Column Cooling System
An innovative column-integrated cooling design was employed, where both the floor and the vertical columns are thermally connected to deliver low-temperature air. This hybrid cooling approach ensures localized comfort without overloading the central HVAC system. The floor-column connection allows cool air to ascend gently, reducing thermal stratification in the occupied zone.
Analysis Parameters
Challenges & Solutions
| Challenge | Solution |
| Large space with high ceilings | Use of high-throw jet nozzles for deep penetration of cooled air |
| Stratification due to thermal layering | Column and floor cooling to distribute cool air evenly and prevent temperature gradients |
| Aesthetic and structural constraints | Integration of systems within architectural elements (columns and wall boundaries) without intrusive ductwork |

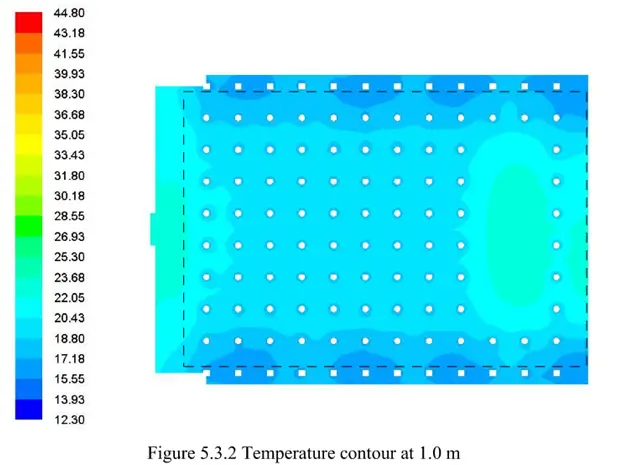

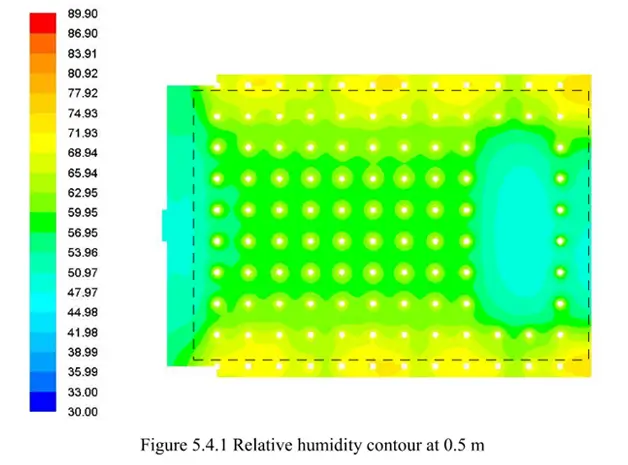

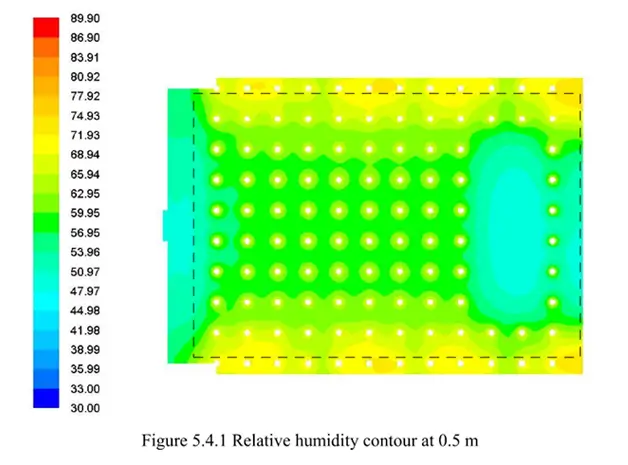

Outcome
The CFD simulation and analysis enabled:
Conclusion
The thermal comfort analysis for Mosque Building KSA demonstrates the critical role of CFD simulation in designing effective HVAC solutions for large-volume spaces. The integration of jet nozzles and an innovative column cooling system achieved a balance between occupant comfort, architectural integrity, and energy efficiency, setting a benchmark for mosque and large hall cooling designs in the region.
